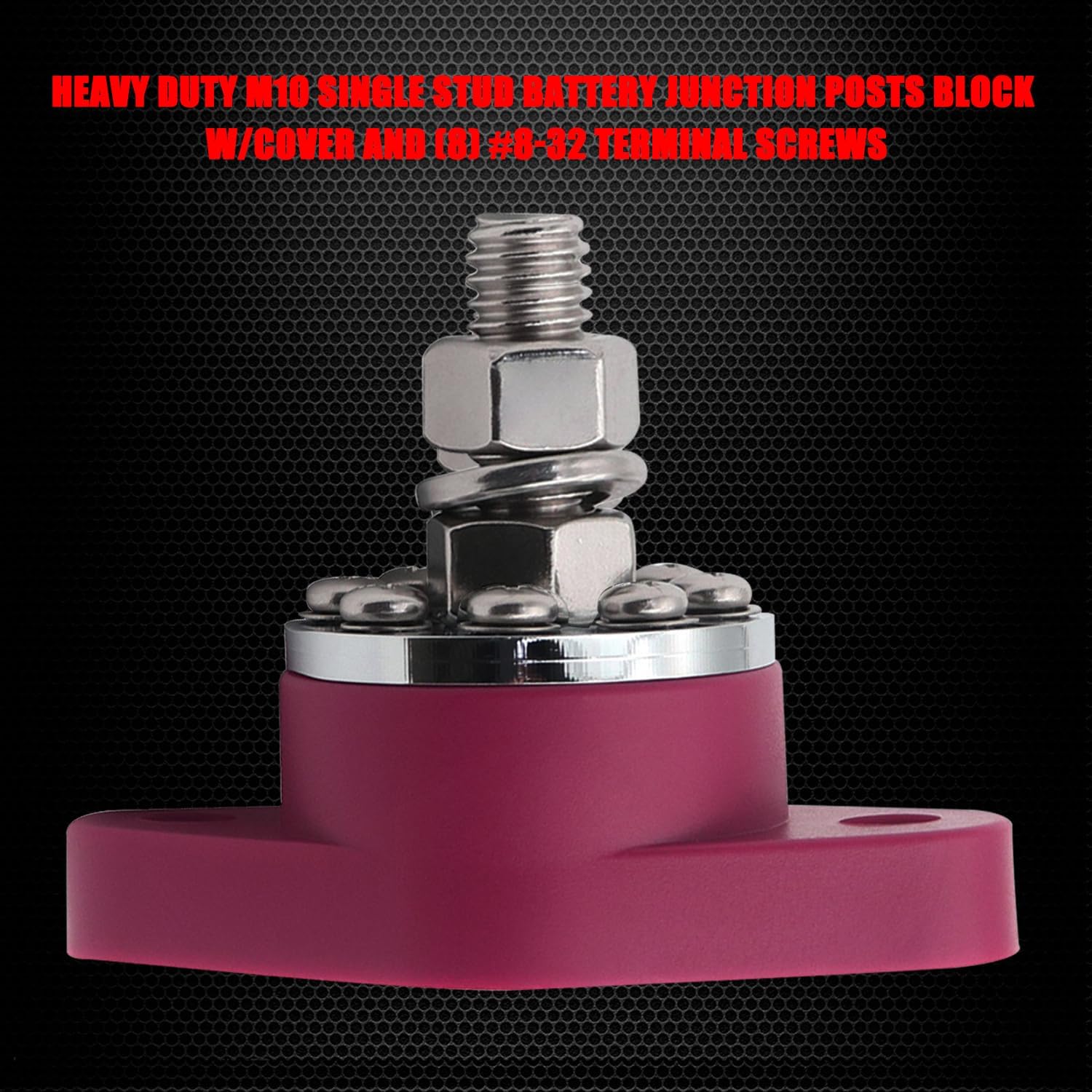

Ampper M10 (3/8") Power Distribution Block Bus Bar 12V with 8 x M4 (#8) Screws, HD 300A Single Stud Battery Junction Post Terminal Distribution Block W/Cover (Red)
Product details
| Management number | 234275344 | Release Date | 2026/06/27 | List Price | $5.20 | Model Number | 234275344 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Ampper heavy duty single stud battery junction posts block W/ cover and 8 x M4 (#8) terminal screws, power junction block power distribution studs terminal Specifications: 1, Used to connect two or more connectors / wires, as battery junction post for battery power and ground junction. 2, Very useful for customizing or relocating battery and wires. 3, Thick (4 mm) nickel plated brass busbar, M10 stud with cover and 8 stainless steel M4 (#8) terminal screws. 4, Nylon construction with stainless steel stud for strength and durability. 5, 300 A continuous at DC 12V, fit for 12V - 48V DC / 300V AC power distribution stud application. 6, Panel surface install with screw mounting holes for any orientation installation. 7, Includes 8 Pcs Nylon 12-10 awg ring terminals & 8 Pcs Nylon 16-14 awg ring terminals. 8, Compatible: used as battery junction block, for car, vehicle, Rv and boat, also electrical equipment and solar cells etc.. Complete kits includes: Battery junction post with nuts, cover and screws, ring terminals.
- Function: used to connect two or more connectors / wires, as battery junction post for battery power junction. Very useful for customizing or relocating battery and wires.
- Heavy Duty: thick (4 mm) nickel plated brass busbar, M10 stud with cover and 8 stainless steel M4 (#8) terminal screws, nylon construction with stainless steel stud for strength and durability.
- Fitment: 300 A continuous at DC 12V, fit for 12V - 48V DC / 300V AC power distribution stud application.
- Easy to install: panel surface install with screw mounting holes for any orientation installation. Includes 8 Pcs Nylon 12-10 awg ring terminals & 8 Pcs Nylon 16-14 awg ring terminals.
- Compatible: used as battery junction block, for car, vehicle, Rv and boat, also electrical equipment and solar cells etc..
| ASIN | B0DBVF989N |
|---|---|
| Color | Red |
| Model | c6639137-3c87-448f-8863-4d242824efe3 |
| Voltage | 300 Volts |
| Brand Name | Ampper |
| Unit Count | 1.0 Count |
| Item Weight | 6.3 Ounces |
| Part Number | Am-BJPSHD-M10R |
| Manufacturer | Ampper |
| Material Type | Nylon |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Current Rating | 300 Amps |
| Number Of Poles | 1 |
| Number Of Contacts | 8 |
| Number of Positions | 16 |
